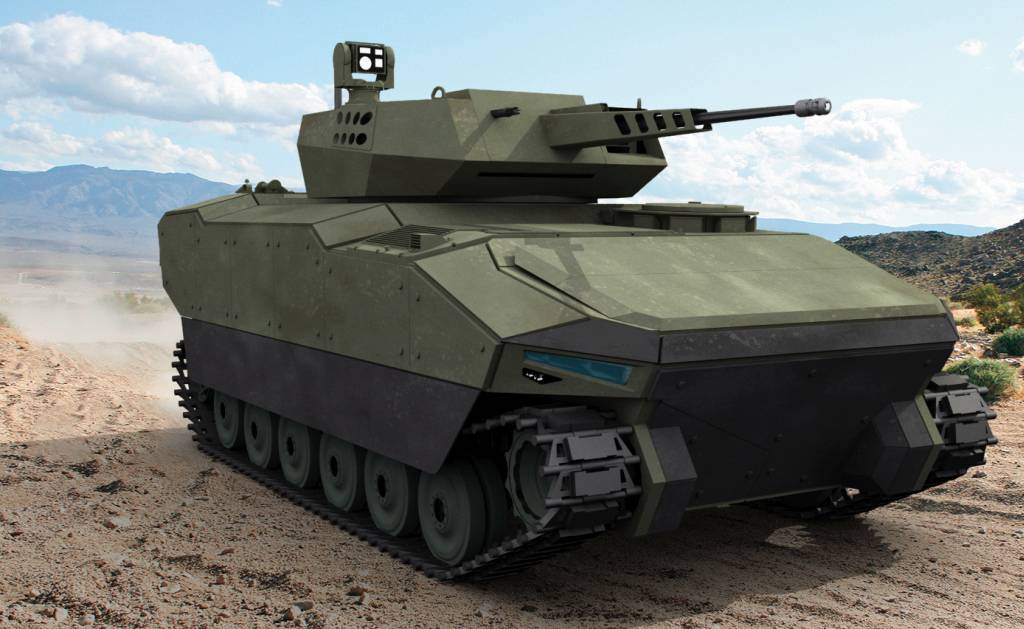

FNSS Defence Systems Inc. proudly presents KAPLAN-20 NG-AFV, the latest member of its New Generation Armored Fighting Vehicles, designed to meet the tactical and technical requirements of the armed forces of Turkey well as those of friendly and allied countries.
KAPLAN-20 brings together various innovations in its class thanks to the experience gained from the 3000 of our tracked armored vehicles that are currently in service with various armies around the world, our field experience of 25 years and the more than 200 specialized engineers.
KAPLAN-20, whose IPRs completely belong to FNSS Savunma Sistemleri A.Ş. (Defence Systems Inc.), is being exhibited for the first time at the 12th International Defence Industry Fair, IDEF’15.
The vehicles architecture which contains protection systems against mines, rocket propelled grenades and kinetic energy threats. In addition up to date electronic subsystems are also integrated together with high performance power pack, heavy duty suspension and tracks which enables the vehicle to carry heavy loads such as 105mm gun systems.
KAPLAN-20 is a new generation armored fighting vehicle that has the ability to move together with main battle tanks, has a 22-25 hp/tonne power-to-weight ratio, which takes into account the weight of the communication system and the automatic transmission.
KAPLAN-20 has a low silhouette, and with its twin 6 road wheeled tracks, has the ability operate in hot/cold weather conditions at high speed not only on asphalt and stabilized highways, but also in soft soil, muddy and rough terrains. The advanced suspension system, tracks has been designed to reduce vibration and increase road holding. Access to the vehicle is gained through a personnel door on the ramp or the hydraulic ramp located at the rear of the vehicle.
On the top, there is a wide hatch for personnel and another hatch that has been specifically designed to maximise the driver’s field of view. The maintenance and repair of the power pack are performed via the cabin access hatch and hatches that are at the front of the vehicle. The two fuel tanks are located at the rear for balance and are fully-armoured and isolated from the vehicle to ensure the security of personnel.
KAPLAN-20 is one of the very few vehicles that have amphibious characteristics. Thanks to the two water propulsion systems located at the rear of the vehicle, KAPLAN-20 can perform in deep and water current rate. It can perform pivot turns in the water and even move backwards. In addition to this, it allows the driver to enter the water without any preparation.
The hull of KAPLAN-20 is manufactured and integrated using a ballistic welding technique. The hull is water resistant together with the hatches and lids are water-proofed via seals. While the power pack cabin and the expanded driver area are located in front of the vehicle, the gunner and the commander areas are located in the middle of the vehicle. The personnel carrier version can carry 8 troops in the rear, and the turreted version can carry 6 dismounts.
Survivability systems such as, reduced thermal signature, laser warning system and sniper detection and CBRN protection systems are also applied the vehicle.
There are also laser-protected glass periscopes that allows the driver to see outside with wide angle of view which provides, high situational awareness. Integrated night vision systems is standard in all variants.
The vehicles structural design enables to improve complete family of vehicles consist of different variants.
